Descripción del producto

ELEGANTES, POTENTES Y REPLETOS DE FUNCIONES

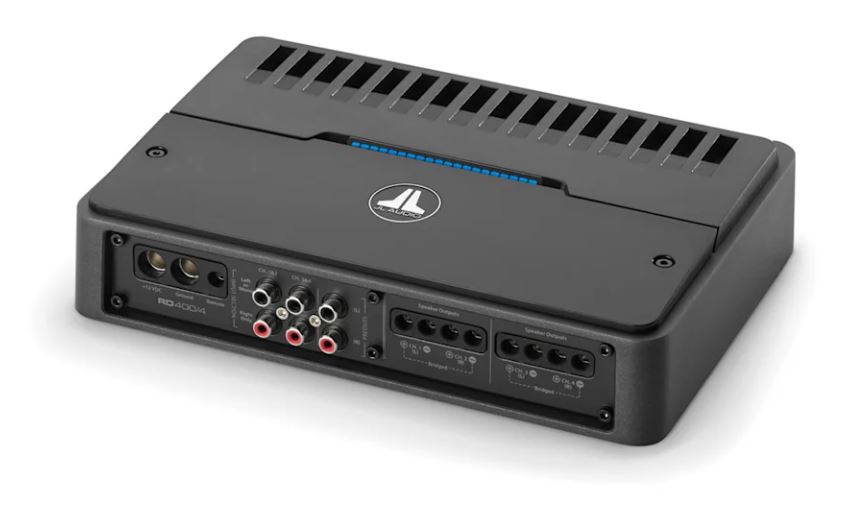

Tiene un diseño estético increíble y un rendimiento a juego. Este amplificador ultracompacto de la serie RD de 4 canales de JL Audio está diseñado para generar potencia a raudales con una eficiencia excepcional y una distorsión baja. El resultado: calidad de audio premium con una reducción significativa en el consumo de corriente y el calor.

Filtro de 12 decibelios por octava con modos seleccionables alto, bajo o de anulación (desactivado)
Tensión de entrada seleccionable: baja (de 200 mv a 2 voltios de rms) a alta (de 800 mv a 8 voltios de rms)
3 opciones de encendido: mando con cable de +12 voltios, detección de señal o compensación de cc
El indicador de recorte led integrado simplifica el ajuste de niveles
Flexibilidad de enrutamiento de señal con modo y tipo de entrada seleccionables

https://www.garmin.com/es-ES/p/1667157/pn/010-03109-00/

Channels	4/6
Physical dimensions (Height)	2.13" (54 mm)
Physical dimensions (Width)	4-Channel: 9.78" (248 mm) 6-Channel: 14.66" (372 mm)
Physical dimensions (Depth)	6.96" (177 mm)
Operating temperature range	–4º to 149º F (–20º to 65º C)
Warranty	2 years
Operating voltage	10-15 VDC

Audio
Amplifier class	Class D
Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)	4-Channel: 75 W x 4/200 x 2 (Bridged) 6-Channel: 75 W x 4/150 x 2 200 W x 2/400 W x 1 (Bridged)
Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD)	4-Channel: 100 W x 4 6-Channel: 100 W x 4/200 x 2
Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD)	4-Channel: 60 W x 4/180 x 2 (Bridged)
Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD)	4-Channel: 90 W x 4
Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	>104 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs	>84 dB
Damping factor @ 4 Ω	>150/50 Hz
Damping factor @ 2 Ω	>75/50 Hz
THD+N @ Rated Power	<1% @ 4 Ω
Frequency response (+0, -1dB)	12 Hz-22 kHz
Input voltage range @ RCA inputs	Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)
Input impedance	10 kΩ (Low) 2.7 kΩ (High)
Current consumption (Idle)	1,900 mA-2,000 mA
Fuse rating	4-Channel: 40 A 6-Channel: 80 A
Recommended fuse type(s)	AFS, AGU or MaxiFuse™
Min. copper power/Ground wire gauge	4 AWG wire
Protection circuits	Over temperature, Ground short, Speaker overcurrent

Signal Processing
Filter mode(s): Channels 1 & 2	4-Channel: Off, Low-pass or High-pass 6-Channel: High-pass only (Off, x1, x10)
Filter Slope(s): Channels 1 & 2	12 dB/octave
Filter frequency range: Channels 1 & 2	4-Channel: 50 Hz-500 Hz 6-Channel: 50 Hz-500 Hz (x10: 500 Hz-5 kHz)
Filter mode(s): Channels 3 & 4	4-Channel: Off, Low-pass or High-pass 6-Channel: Off, High-pass or Bandpass
Filter Slope(s): Channels 3 & 4	12 dB/octave
Filter frequency range: Channels 3 & 4	50 Hz-500 Hz
Filter mode(s): Channels 5 & 6	6-Channel: Off, High-pass or Bandpass
Filter Slope(s): Channels 5 & 6	6-Channel: 12 dB/octave
Filter frequency range: Channels 5 & 6	6-Channel: 50 Hz-500 Hz
Detented, calibrated filter frequent potentiometers
Channel input mode switch	4-Channel: yes (2/4 Channels) 6-Channel: yes (2/4/6 Channels)
Pass-through preamp output	Buffered

JLAUDIO-010-03109-00

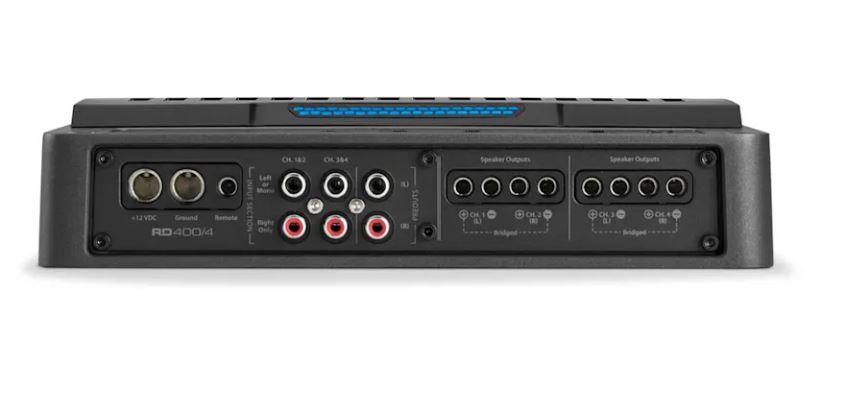

Imágenes de producto
